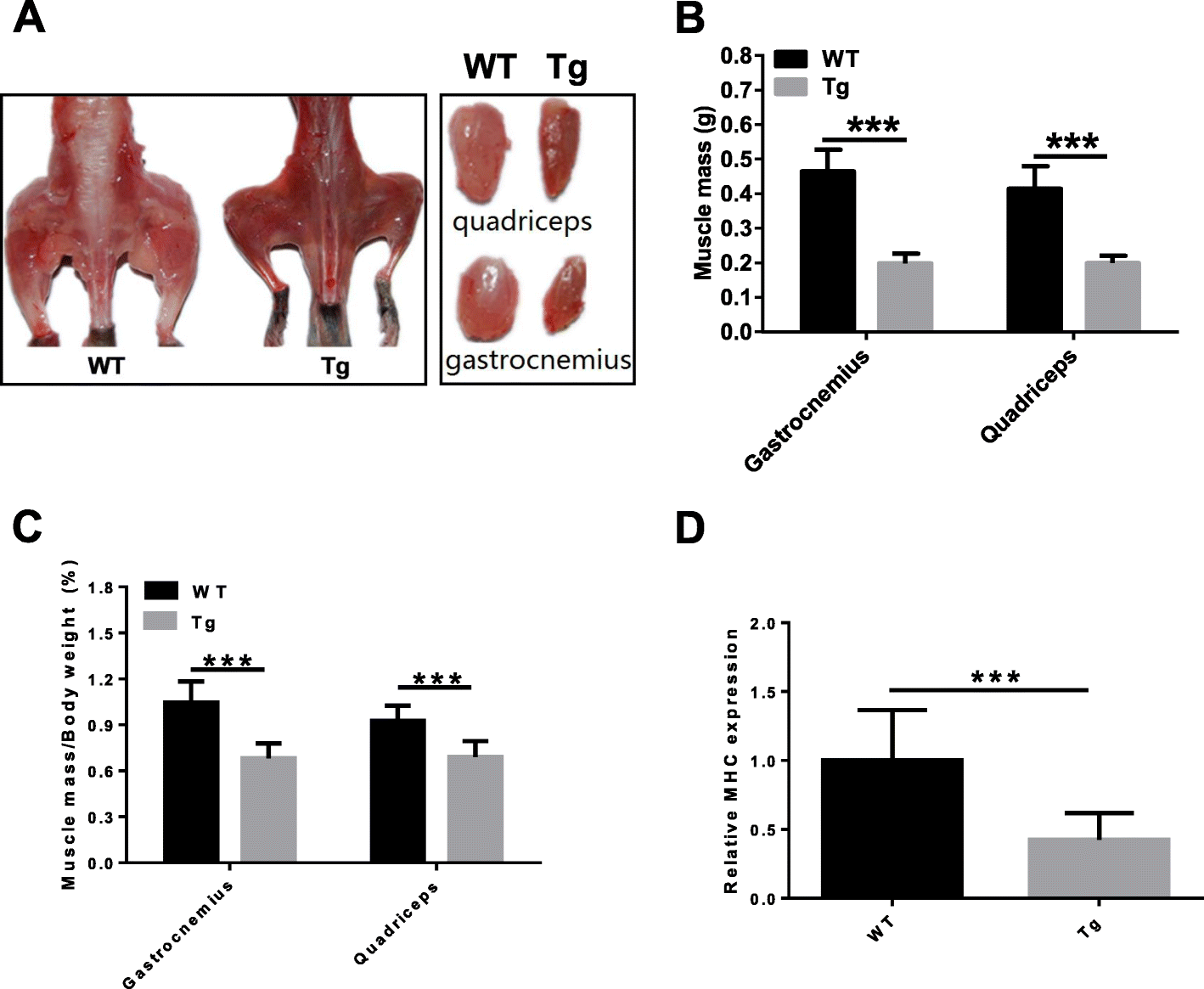

Fig. 2
From: Muscle atrophy induced by overexpression of ALAS2 is related to muscle mitochondrial dysfunction
Loss of muscle mass in the ALAS2 transgenic mice. a Left panel: gross morphology of skinned hindlimb muscles of ALAS2 transgenic mice and WT mice. Right panel: comparison of individual muscles. b Comparison of changes in wet weight of individual muscles mass (n = 6–7). c Comparison of in wet weight of individual muscles mass normalized to body weight (n = 6–7). d The MHC mRNA expression (n = 6–7). Values are means ± SD.*P < 0.05; **P < 0.01; ***P < 0.001
